Hello
Welcome to Zensor

The smallest EIS potentiostat designed for sensor development
AC Impetence / EIS Potentiostat Potentiostat

EIWP100/110

  • Electrochemical impedance analyzer for sensor development
  • Simulator function
  • Finger size all-around potentiostat
  • Wireless connect, plug and play
  • Two port type for almost all electrodes

The smallest EIS potentiostat designed for sensor development
(AC Impetence / EIS Potentiostat Potentiostat)

EIWP100 / 110

  • Electrochemical impedance analyzer for sensor development
  • Simulator function
  • Finger size all-around potentiostat
  • Wireless connect, plug and play
  • Two port type for almost all electrodes

  • Introduction and application of
    the Smallest ⌜Wireless⌟ EIS Potentiostat-EIWP100/110:

    This is all-in-one model with basic electrochemical detection methods, AC impedance analysis and simulator function

    WHAT IN BOX?

    只有手指大小的無線電化學分析儀/工作站/恆電位儀-Zensor
                                  R&D-ECWP100

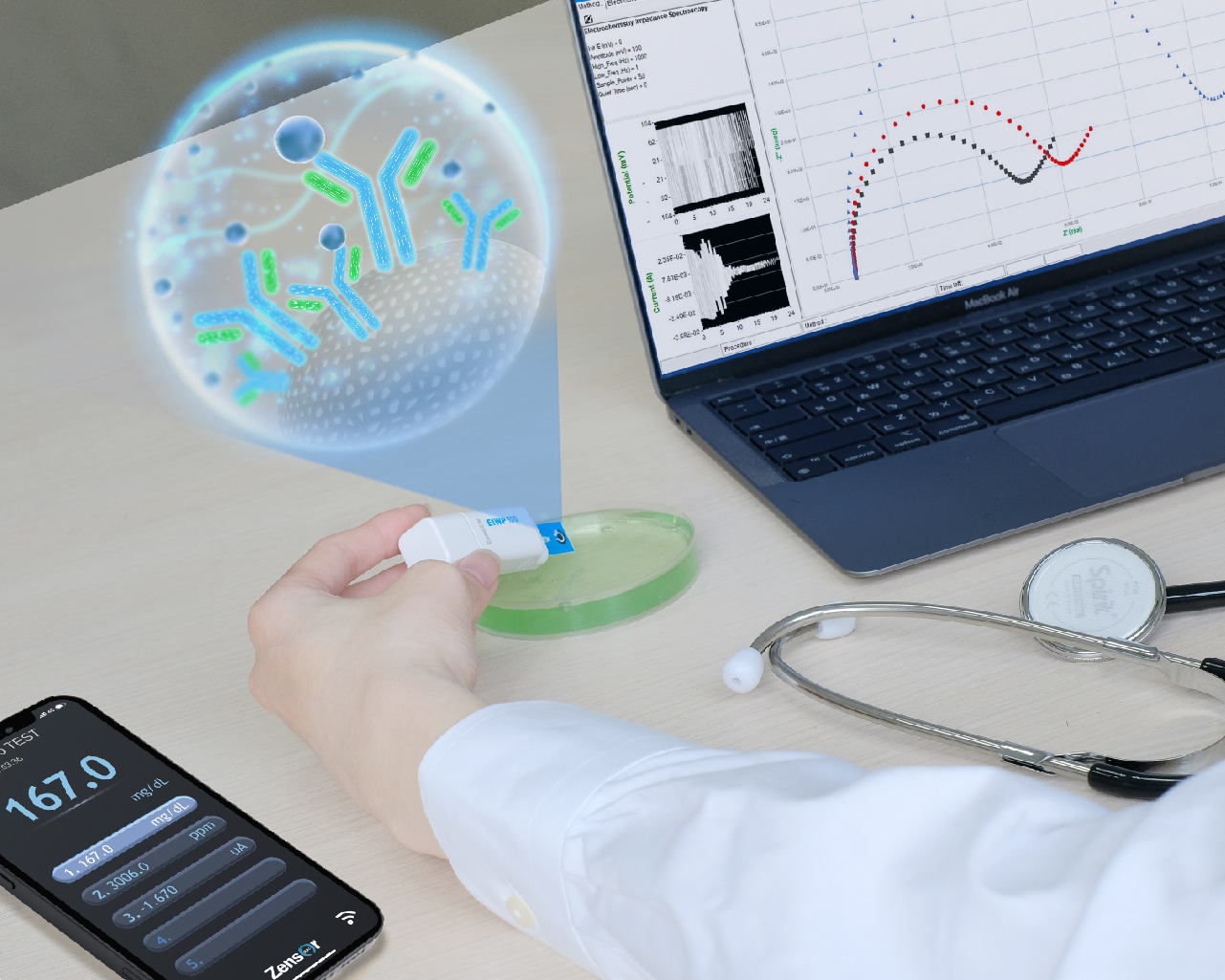

    Design for your own "electrochemical AC impedance" sensor

    Develop variety of different detection techniques

    Different from the traditional electrochemical impedance spectrum (EIS) analyzer which has been used to corrosion, electro-deposition batteries and fuel cells and other electrochemical systems for a long time in the past. The EIWP series is said to be "born for sensors". The technical specifications of the EIWp series fully meet the requirements of biosensor development. Electrochemical AC impedance technology can be developed into sensor products, such as: electrochemical immunoassay (antigen/antibody) sensor, capacitive biochemical sensor, biochemical virus sensor, gas sensor, etc.

    只有手指大小的無線電化學分析儀/工作站/恆電位儀-Zensor
                                  R&D-ECWP100
  • 3 EIS analysis +7 basic electrochemical method

    Almost meet all the electrochemical sensor research requirements

    Cyclic Voltammetry (CV)
    Amperometry (IT)
    Open Circuit Potentiometry (OCP)
    Differential Pulse Voltammetry (DPV)
    Square Wave Voltammetry (SWV)
    Linear Sweep Voltammetry (LSV)
    Pulsed Amperometry (Pulsed IT Curve)
    AC Impedance (EIS)
    Impedance - Time (IMPT)
    Impedance - Potential (IMPE)

    ECM fitting software
    Equivalent Circuit Model

    Special for biosensor principle study

    EIS data implied large amount of information to explore and study, which any of them has a potential to be developed into sensors and applications. Thus, we not only introduce you a distingtively featured potentiostat, but also provide a ECM (Equivalent Circuit Model) fitting software to assist your data analysis.

    Equivalent Circuit Model curves fitting software

    More comprehensive and prespective
    analysis diagram for exploration

    In addition to the Nyquist plot provided by the general commercial fitting softwares, Zensor provides it more intuitive with full prespective graphs. These include graphs of total impedance, phase, real part impedance and imaginary part impedance, which will help you quickly inspect the features during experiments.

    Provide different precision fit

    Zensor ECM software provides 10 levels of electrochemical-equivalent circuit fit precision, from fast preliminary fit to accurate fit, allowing you to make quick adjustments during experiments or to make precise analysis after the experiment . When faced with non-typical sensor impedance model or non-ideal data, the fit results can be adjusted more appropriately through chosing different levels for fit.

    Auto Fit

    Standard Models - quick and intuitive choices
    Fit Levels - fast or precise results


    Manual Fit

    Specified Values - Input and see the effects
    Designed Models - Build and edit your own ones


    IMPE & IMPT analysis method help to develop electrochemical AC impedance sensor

    Impedance – Potential (IMPE)

    Impedance – Potential (IMPE) method is to apply a fixed frequency sinusoidal wave crossing a voltage range. This method is similar to Linear Sweep Voltammetry (LSV) or Square Wave Voltammetry (SWV) methods introduced in 1.2 Electrochemical Methods , but the measuring result from Ohm’s Law (V = I R) becomes AC impedance Z = V/I instead of only resistance. With the IMPE method, certain substances in the electrochemical system reacts according to specific potentials, and the impedance of the system changes due to the reactions. Therefore, this method can be used to analyze the elements or components in the system. This method is a non-destructive technique to exam a sample material to characterize its properties, it can be used to detect and quantify the presence of analytes in samples such as waste water, biological fluids and air quality tests.


    Impedance – Time (IMPT)

    Impedance – Time (IMPT) method is to apply a single sinusoidal wave continued for a period of time. This method is similar to Amperometry (I-t) method introduced in 1.2 Electrochemical Methods , but the AC impedance is calculated instead of only resistance. The IMPT method is suitable for a continuous monitor to an electrochemical system. With properly tuning the potential and the frequency of the sinusoidal wave, the variation of subjected substance in the system can be detected if added or removed. As the method reads the impedance over time, it can be applied in dynamic microfluidic systems or flow cytometry systems for detecting various analytes, including ions, biomolecules, and cells.

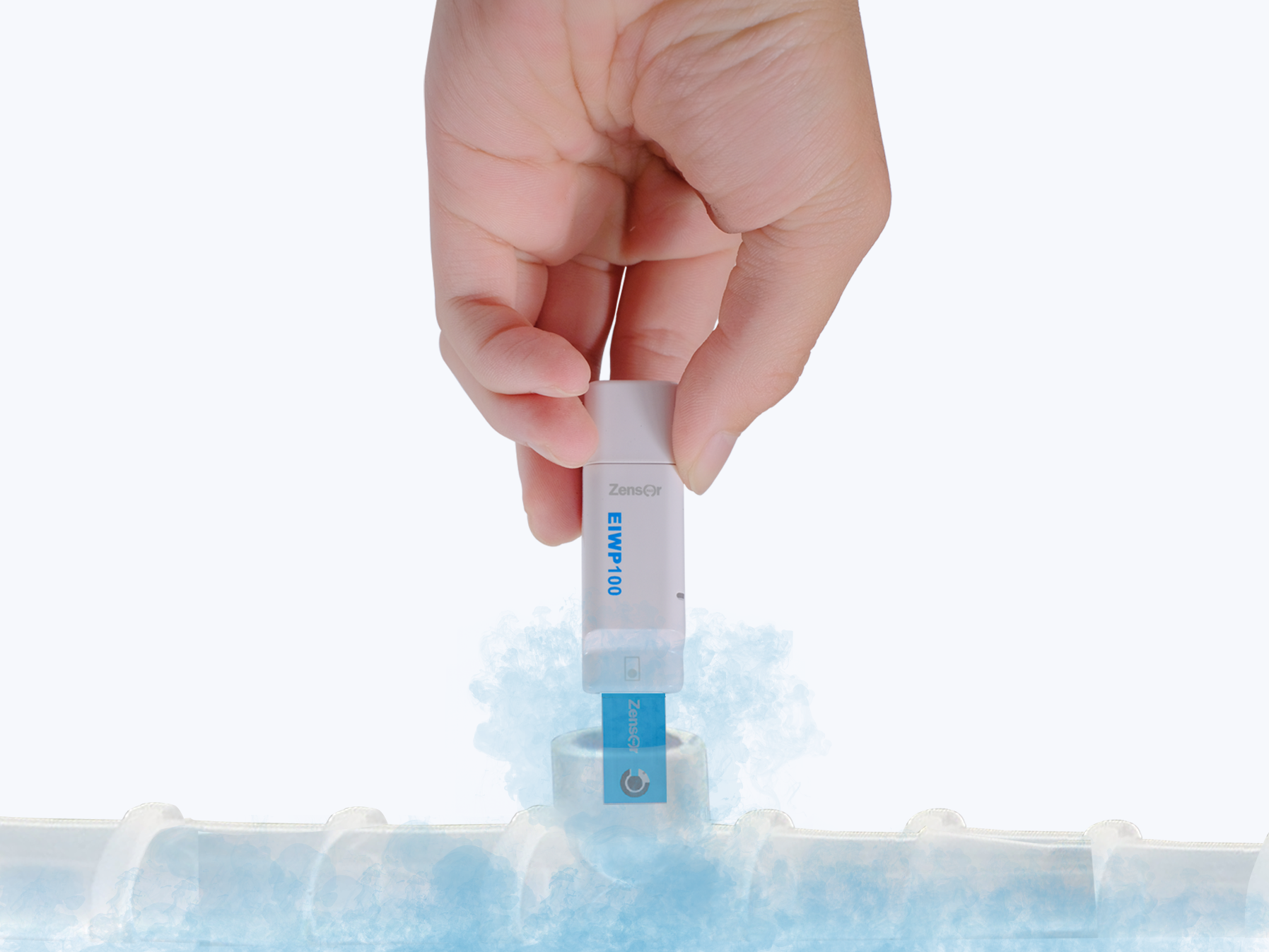

    Finger-sized wireless EIS potentiostat

    The smallest and lightest, to be used in enclosed space

    You can accurately control the experimental conditions in a very tight space, which can improve the stability of the experimental conditions. It is suitable for experiments that require accurate control of ambient gas concentration, temperature and other conditions

    只有手指大小的無線電化學分析儀/工作站/恆電位儀-Zensor
                                    R&D-EIWP100

    Wireless connection

    Trend of the industry

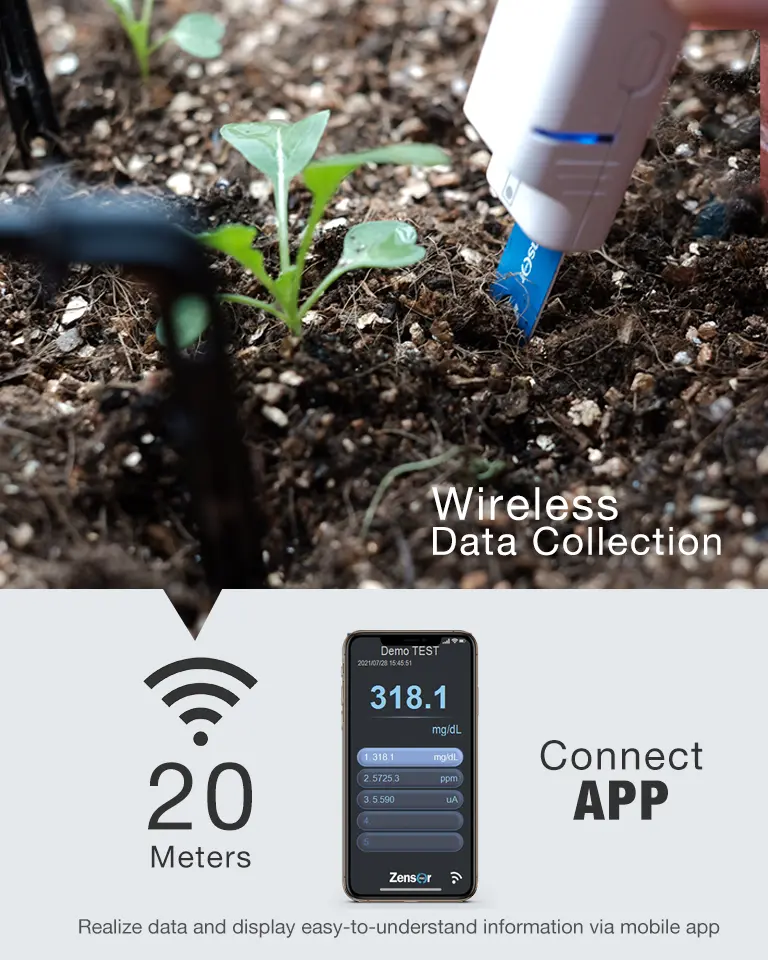

    Wireless potentiostat can meet the needs of developing remote sensors, suitable for outdoor, smart farm, smart home, smart medical, IoT sensors, etc.

    可用於智慧農場/醫療/IoT傳感器的
                                    戶外使用的無線電化學分析儀/工作站/恆電位儀-Zensor
                                    R&D-EIWP100

    Reliable 2.4G transmission technology, no pairing, plug and play

    The data transmission distance is up to 20m

    2.4G傳輸技術,8通道即插即用的無線電化學分析儀/工作站/恆電位儀-Zensor
                                    R&D-EIWP100
  • Two Kinds of port, easy switch

    Screen printed electrode or crocodile clips, changeable quickly in one-second

    無線電化學分析儀/工作站/恆電位儀的印刷電極SPE插口-Zensor
                                      R&D-EIWP100
    無線電化學分析儀/工作站/恆電位儀的鱷魚夾轉接線-Zensor
                                      R&D-EIWP100
    Specification:

    Total Length: about 0.5m and suitable for ECWP and EIWP series

    clips:

    (A) Green - Working Electrodes(WE)

    (B) White - Reference Electrodes(RE)

    (C) Red - Counter Electrodes(CE)

Why you need EIWP ?
You have the

AMBITION

to turn research achievement to real product

The world's first AC impedance analyzer equipped with ZENSOR classic electrochemical simulation function

Let non-electrochemical professionals understand what you're doing

Did you know that only electrochemists really know what cyclic voltammetry is? Are you still using a bunch of boring charts to report your work ? What do you need to let non-electrochemists have a good understanding of your design and how it works in cross-departmental cooperation and communication, product proposal, application and final report of funding? That is what makes Electrochemical-Analyzer Simulator of Zensor unique. The Electrochemical-Analyzer Simulator of Zensor is an intuitive demo tool for communication. It hides all the complicated experimental steps setting and data processing in the background program and only show the final test results for a live demo that proves your design to be feasible and make it persuasive enough.

無線電化學分析儀/工作站/恆電位儀的模擬器功能及手機APP實時顯示原理-Zensor
                                  R&D-EIWP100

Assist you in completing market research and user-friendly test at the product design stage

Product designer can preset sampling prompts, test start time setting, electrochemical test process, data selection, data background processing, and concentration conversion steps, etc. in our software and run in the background progress. In addition, with the APP synchronous display function, product designer can complete the prototype easily without the need for customized mold and software. Wireless design and texture of the appearance are closer to the appearance of finished products.

Wireless and simulator function that use live test to their advantage completely

For samples that are difficult to be preserved after sampling, or for test results that need to be obtained immediately after complex data processing at the production line, clinic or outdoor sampling site, our wireless potentiostat with simulator-function is the perfect solution for you.

EIWP100
EIWP110
Cyclic Voltammetry(CV)
AC Impedance(EIS)
Impedance - Time
Impedance - Potential
Amperometry(IT)-
Linear Sweep Voltammetry(LSV)-
Differential Pulse Voltammetry(DPV)-
Square Ware Voltammetry(SWV)-
Open Circuit Potentiometry(OCP)-
Multi-Channel--
Specification

(A) Voltage scan range: +2 ~ -2(V)

(B) Current range : 1.0E-3 ~ 1.0E-9(A)

(B) Current resolution : 0.5% of current

(B) Maximum wireless distance: 20m

(B) Frequency range: 0.2 Hz ~ 200k Hz

Operating SystemWindows 10 and above
mobile
                                    APP of
                                    wireless
                                    potentiostat
                                    -Zensor
                                    R&D
                                    ECWP100-single

Let's start sharing
your research on the app!

You can click on the link or scan qrcode to download the app developed by our company


Scan QR-code to Download App

Which potentiostat best suitable your needs?

loadingloadingloadingloadingloadingloadingloading
ECWP100singleECWP100plusEIWP100EIWP110MCP100ECAS100ACIP100
wirelesswirelesswirelesswirelessUSB poweredUSB and battery powered + Offline useUSB and battery powered + Offline use
SimulationSimulationSimulationSimulation-Simulation(editable chip)Note.1Simulation(editable chip)Note.1
SPE availabelSPE availabelSPE availabelSPE availabelSPE availabelSPE availabelSPE availabel
3 clips connector available3 clips connector available3 clips connector available3 clips connector available3 clips connector available3 clips connector available3 clips connector available
Single-channelMaximum 8 channelSingle-channelSingle-channel10 channelSingle-channelSingle-channel
Need PCNeed PCNeed PCNeed PCNeed PC5.0 touch panel5.0 touch panel
CV/LSV/SWV/DPV/IT/OCPCV/LSV/SWV/DPV/IT/OCPCVCV/LSV/SWV/DPV/IT/OCPCV/IT/OCPCV/LSV/SWV/DPV/IT/OCPCV/IT/OCP
--EIS 0.2Hz - 200kHzEIS 0.2Hz - 200kHz--ACIP
--IMPTIMPT--IMPT
--IMPEIMPE--IMPE
+2~-2V+2~-2V+2~-2V+2~-2V+2~-2V+2~-2V+2~-2V
10-3~10-9A10-3~10-9A10-3~10-9A10-3~10-9A10-2~10-10A10-2~10-10A10-2~10-10A
Detail-InfoDetail-InfoDetail-InfoDetail-InfoDetail-InfoDetail-InfoDetail-Info

Note1:Simulation function-The test steps can be burned into replaceable smart chip, so a large number of test samples can be tested offline, and the result can be read directly on the panel .That will simulate the process of product development.
