HOME >Printed Electrodes

Carbon(C) working electrode electrochmical Screen
printed electrodes & Interdigitated electrodes-Zensor
R&D-SPE

disposable electrochmical Screen printed
electrodes & Interdigitated electrodes-Zensor R&D-SPE

customized electrochmical Screen printed
electrodes & Interdigitated electrodes-Zensor R&D-SPE

訂製客製化電化學絲網印刷電極/網版印刷電極/濺鍍電極-Zensor R&D-SPE

Gold(Au) working electrode electrochmical Screen
printed electrodes & Interdigitated electrodes-Zensor
R&D-SPE

Gold(Au) three electrode electrochmical Screen
printed electrodes & Interdigitated electrodes-Zensor
R&D-SPE

Gold(Au) three electrode WE/CE/RE(AgCl)
electrochmical Screen printed electrodes &
Interdigitated electrodes-Zensor R&D-SPE

Carbon(C) three electrode WE/CE/RE(AgCl)
electrochmical Screen printed electrodes &
Interdigitated electrodes-Zensor R&D-SPE

→

←

Screen printed electrodes /Interdigitated electrodes/SPE

Screen printed electrodes/
Interdigitated electrodes

No pretreatment & maintenance free
Excellent electrochemical performance
Small lot-to-lot difference
Various materials & sizes

Screen printed electrodes /Interdigitated electrodes/SPE

Screen printed electrodes/
Interdigitated electrodes

No pretreatment & maintenance free
Excellent electrochemical performance
Small lot-to-lot difference
Various materials & sizes

No pretreatment & maintenance free
The traditional need-to-be-polished electrode want a time-consuming polishing process, or even a complex pretreatment process.Screen printed and Interdigitated electrodes provide you with a "Ready to be Used" solution to effectively save your experiment time.
Excellent electrochemical performance & Small lot-to-lot difference
Zensor's screen printed electrodes are manufactured by our exquisite production technolog ,which batch difference is less than 5% and can be used continuously for more than 24h *. The most important thing is that the electrochemical performance is equally excellent, providing you with the disposable and lab-analysis-level sensor.
* In a specific solution and experimental environment.
The images above are CVs of GC,SPE, Interdigitated electrodes in 3mM Ferricyanide with 0.1 M KCl,pH=7
Why using Screen printed electrodes(SPE) can accelerate research?
Just need a few microliters of sample
Screen printed electrodes just require a few microliters to complete the test. SPE are a perfect solution for electrochemical tests on precious and expensive samples
Suitable for the in-situ tests
SPE can be used in conjunction with IR,UV,Raman spectrum, NMR, TEM, microscopy and other detection equipments
and other detection equipments
With the Electrochemical Flow Cell, easy for real-time testing
Image:SPE / EFC combined with HPLC apply in Real-time testing
Effectively shorten the experiment time and make the data more reliable
Screen printed electrodes are designed to be disposable, so you do not have to worry about electrode pretreatment and maintenance procedures.You can used SPE as you like and don't worry about electrode broken.In addition, in the same experimental environment, multiple electrodes can be modified and tested at the same time.That can complete repeatability tests within a short time ,and get more reliable data

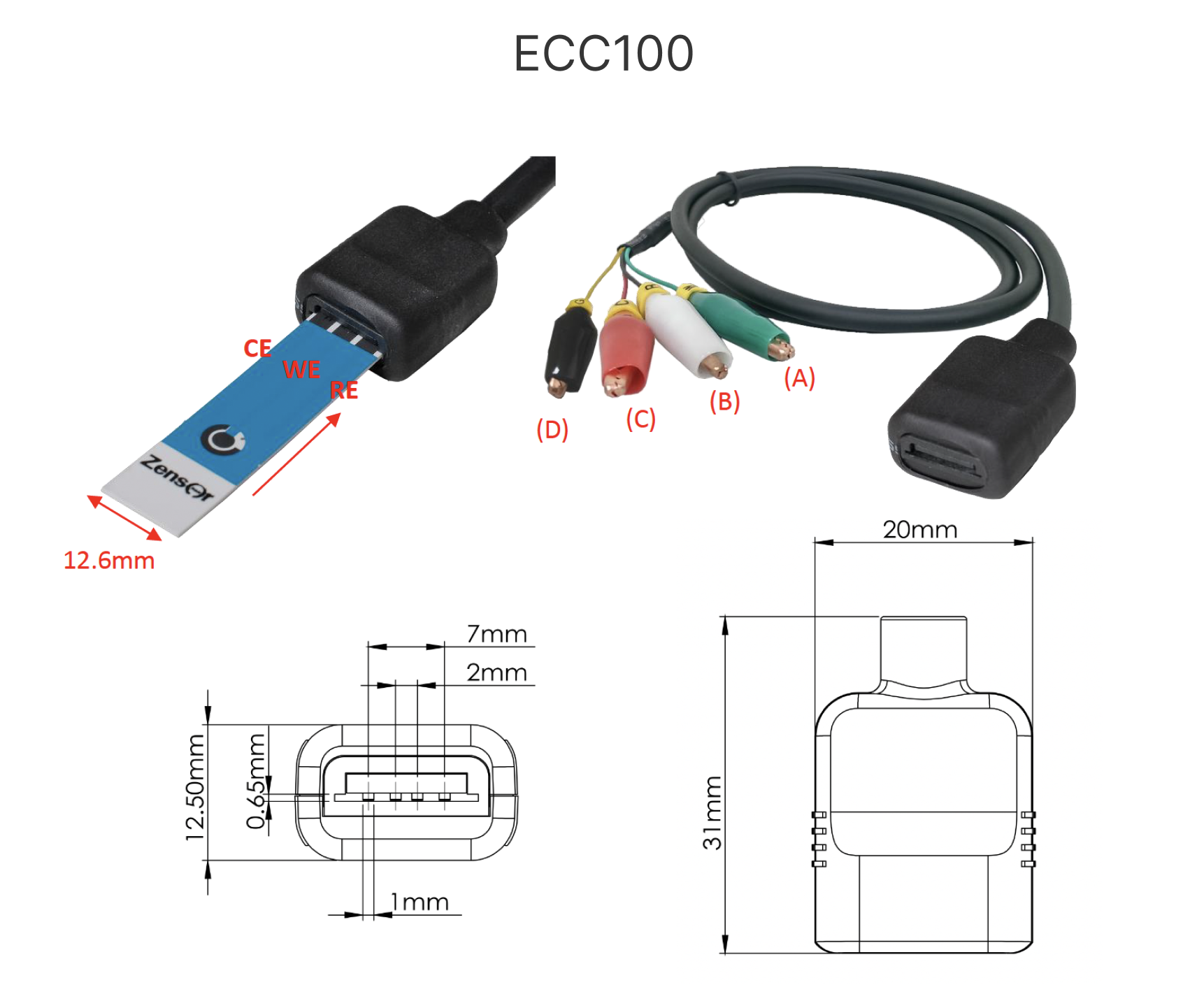

Connector cable
Crocodile clips can be converted to screen printed electrode connector easily with ECC100. High efficiency transmission line and precise metal port, provide you nearly zero signal loss. Wire length: about 1m. ECC100 is suitable for all ZensorSPE.
Crocodile Clips
- (A) Green - Working Electrodes(WE)
- (B) White - eference Electrodes(RE)
- (C) Red - Counter Electrodes(CE)
- (D) Black - Ground(GND)
Connector Direction
- (A) Left - Counter Electrodes(CE)
- (B) Middle - Working Electrodes(WE)
- (C) Right - Reference Electrodes(RE)
- (C) Right - Reference Electrodes(RE)

This is first time to use SPE, you may consider our regular models first.

Screen printed electrodes/ SPE


Model	TE100	TE200	TE300	GTE100	FTE100	FTE200	FTE300	SE100	SE101	SE102	Ag100
Electrode system	3 electrodes	3 electrodes	3 electrodes	3 electrodes	3 electrodes	3 electrodes	3 electrodes	single electrode	single electrode	single electrode	single electrode
Base plate	PP	PP	PP	AI₂O₃	PI	PI	PI	PP	PP	PP	PP
Size of base plate（mm*mm）	12.6*50	12.6*50	12.6*30	12.0*30	12.6/6*30	12.6/6*50	12.6/6*70	12.6*50	12.6*50	12.6*50	12.6*50
Material of WE	Carbon	Carbon	Carbon	Glassy Carbon	Carbon	Carbon	Carbon	Carbon	Carbon	Carbon	Ag
Size of WE	D=3mm	2*1mm	D=3mm	D=3mm	D=1.0mm	D=1.0mm	D=1.0mm	D=5mm	D=3mm	D=1.5mm	D=5mm
Area of WE (mm²)	7.1	2.0	7.1	7.1	0.79	0.79	0.79	19.6	7.1	1.8	19.6
Material of RE	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	-	-	-	-
Area of RE(mm²)	0.1	2.0	0.1	0.1	0.2	0.2	0.2	-	-	-	-
Material of CE	Carbon	Carbon	Carbon	Glassy Carbon	Carbon	Carbon	Carbon	-	-	-	-
Area of CE (mm²)	10.6	4.0	10.6	10.0	3.05	3.05	3.05	-	-	-	-

Interdigitated electrodes


Model	AUSE100	AUTE100	AUTE100AgCI	AUTE200	AUTE200AgCI
Electrode system	single electrode	3 electrodes	3 electrodes	3 electrodes	3 electrodes
Base plate	PC	PC	PC	PC	PC
Size of base plate（mm*mm）	12*50	12*50	12*50	12*50	12*50
Material of WE	Gold	Gold	Gold	Gold	Gold
Size of WE	R=5mm	R=3mm	R=3mm	2*1mm	2*1mm
Area of WE (mm²)	19.6	7.1	7.1	2.0	2.0
Material of RE	-	Gold	AgCI	Gold	AgCI
Area of RE(mm²)	-	1.0	1.0	2.0	2.0
Material of CE	-	Gold	Gold	Gold	Gold
Area of CE (mm²)	-	10.6	10.6	4.0	4.0

For lab-research use

In order to meet your special research needs, we can also adjust the design, material and specification of the electrode. let your imagination take you everywhere

For mass production

With our advanced technology and rich experience of product development , we provide you with professional OEM, ODM services

Cooperative development project

Micro single use & calibration-free pH electrode

UltraeWebsite

If you have never used SPE before, we offer you a free trial. Come and contact us!
