HOME > Flexible Screen-printed Electrodes

Flexible screen-printed disposable electrodes-Size_FTPE300-Zensor R&D-SPE

訂製客製化電化學絲網印刷電極/網版印刷電極/濺鍍電極-Zensor R&D-SPE

Flexible screen-printed disposable electrodes-Product Introduction

Flexible screen-printed disposable electrodes-Size_FTPE100-Zensor R&D-SPE

Flexible screen-printed disposable electrodes-Size_FTPE200-Zensor R&D-SPE

→

←

NEW LAUNCH

Flexible screen-printed disposable electrodes
Flexible biosensors/wearable device electrodes

FTE100/200/300/

Flexibility for easy bending and wrapping
Disposable design, no maintenance or pretreatment
Excellent biocompatibility with PI material
Superior electrochemical performance after bending
Customized service

Flexible screen-printed disposable electrodes-Zensor R&D-SPE

Flexible screen-printed disposable electrodes
Flexible biosensors/wearable device electrodes

FTE100/200/300/

Flexibility for easy bending and wrapping
Disposable design, no maintenance or pretreatment
Excellent biocompatibility with PI material
Superior electrochemical performance after bending
Customized service

Flexible PI material
Available for bending
The flexible disposable screen-printed electrode is made of DuPont™ Polyimide (PI) material, which allows easy bending and wrapping to adapt to various shapes and sizes of sampling surfaces, organs, or tissues. It offers greater flexibility and applicability in the development of biosensors for prototype in laboratory or medical fields.
High reproducibility
High accuracy and reliability after bending
Our screen-printing production production line is equipped with a high-standard quality management system, ensuring that each disposable screen-printed flexible electrode manufactured by Zensor possesses outstanding electrochemical performance and a batch-to-batch variation of less than 5%. This means that the flexible electrodes developed by Zensor provide highly stable and reproducible results in different experimental.

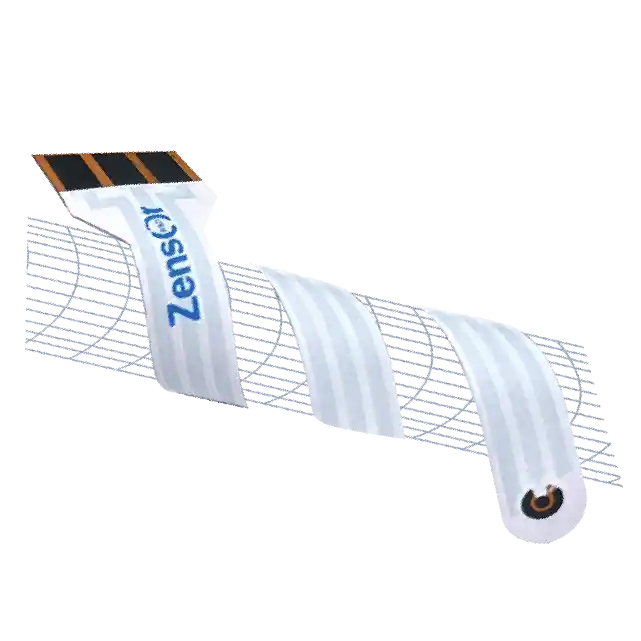

Flat
Folded
Wrapped
Excellent biocompatibility
Suitable for biosensors
The substrate material of the flexible disposable screen-printed electrode is polyimide (PI). PI has excellent biocompatibility, making it an ideal material for use in biosensors.
Heat resistant flexible printed electrode
Sterilizable disposable electrode
Polyimide has higher temperature stability than the PE and PC materials commonly used in screen printing electrodes.
Flexible disposable electrode
No pretreatment and maintenance required
Samples detected by biosensors are often complex in composition, which may contain proteins, sticky substances, etc., that are not easy to clean or can contaminate the electrode surface. Whether it is laboratory research or product development, the disposable electrode design can make every test more convenient and accurate.
Application in the development of wearable biosensors
Wearable biosensors need to adhere to the surface of the human body or animals and provide a comfortable and effortless wearing experience during long-term activities. They should also deliver real-time and accurate biological sensing signals. These electrodes are suitable for detecting sweat, secretions, and can be used in the development of non-invasive testing products.
Note: The image above is for illustrative purposes only.
Application in Probe-based Biosensors
Compatible with Endoscopic Systems
The flexible electrodes can be used in conjunction with catheters, probes, or endoscopic systems to construct electrochemical sensing elements for pipeline detection or endoscopic biosensors. This allows for easy access and continuous in-situ detection in narrow pipes and small spaces.

Note: The image above is for illustrative purposes only.
Compatible with Wireless Electrochemical Analyzer ECWP
The flexible SPE electrodes can directly connect with the Zensor ECWP series - wireless electrochemical analyzers. In ECWP system, sensor can be connected to smartphones or computer through wireless technology. It will help to set single-channel or multi-channel experimental platforms and integrate electrode reactions, signal testing, data collection, transmission, and analysis conveniently .
Note: The image above is for illustrative purposes only.
More about ECWP
Relevant Accessory
Extension Cable
ECC102 is available for ECWP and EIWP Electrochemical Analyzer
Note: The cable is compatible with all ZensorSPE and ZensorFSPE series electrodes
Connector Gaske
When a thin electrode such as FTE series is used, the Connector Gasket (CG1) is suggested to be used with Potentiostat and cable.
Note: The cable is compatible with all ZensorSPE and ZensorFSPE series electrodes

Flexible Electrode Specifications

Flexible screen-printed disposable electrodes-DM Detailed Dimensions


Model	FTE100	FTE200	FTE300
Length	30mm	50mm	70mm
Thickness	0.125mm	0.125mm	0.125mm
Material	Polyimide (PI)	Polyimide (PI)	Polyimide (PI)
WE (Carbon)	R=0.5mm / A=0.79mm	R=0.5mm / A=0.79mm	R=0.5mm / A=0.79mm²
CE (Carbon)	3.05mm ²	3.05mm ²	3.05mm ²
RE (Ag Pseudo)	0.20mm ²	0.20mm ²	0.20mm ²

DM Download

This is first time to use SPE, you may consider our regular models first.

Screen printed electrodes/ SPE


Model	TE100	TE200	TE300	GTE100	FTE100	FTE200	FTE300	SE100	SE101	SE102	Ag100
Electrode system	3 electrodes	3 electrodes	3 electrodes	3 electrodes	3 electrodes	3 electrodes	3 electrodes	single electrode	single electrode	single electrode	single electrode
Base plate	PP	PP	PP	AI₂O₃	PI	PI	PI	PP	PP	PP	PP
Size of base plate（mm*mm）	12.6*50	12.6*50	12.6*30	12.0*30	12.6/6*30	12.6/6*50	12.6/6*70	12.6*50	12.6*50	12.6*50	12.6*50
Material of WE	Carbon	Carbon	Carbon	Glassy Carbon	Carbon	Carbon	Carbon	Carbon	Carbon	Carbon	Ag
Size of WE	D=3mm	2*1mm	D=3mm	D=3mm	D=1.0mm	D=1.0mm	D=1.0mm	D=5mm	D=3mm	D=1.5mm	D=5mm
Area of WE (mm²)	7.1	2.0	7.1	7.1	0.79	0.79	0.79	19.6	7.1	1.8	19.6
Material of RE	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	Ag Pseudo	-	-	-	-
Area of RE(mm²)	0.1	2.0	0.1	0.1	0.2	0.2	0.2	-	-	-	-
Material of CE	Carbon	Carbon	Carbon	Glassy Carbon	Carbon	Carbon	Carbon	-	-	-	-
Area of CE (mm²)	10.6	4.0	10.6	10.0	3.05	3.05	3.05	-	-	-	-

Interdigitated electrodes


Model	AUSE100	AUTE100	AUTE100AgCI	AUTE200	AUTE200AgCI
Electrode system	single electrode	3 electrodes	3 electrodes	3 electrodes	3 electrodes
Base plate	PC	PC	PC	PC	PC
Size of base plate（mm*mm）	12*50	12*50	12*50	12*50	12*50
Material of WE	Gold	Gold	Gold	Gold	Gold
Size of WE	R=5mm	R=3mm	R=3mm	2*1mm	2*1mm
Area of WE (mm²)	19.6	7.1	7.1	2.0	2.0
Material of RE	-	Gold	AgCI	Gold	AgCI
Area of RE(mm²)	-	1.0	1.0	2.0	2.0
Material of CE	-	Gold	Gold	Gold	Gold
Area of CE (mm²)	-	10.6	10.6	4.0	4.0

For lab-research use

In order to meet your special research needs, we can also adjust the design, material and specification of the electrode. let your imagination take you everywhere

For mass production

With our advanced technology and rich experience of product development , we provide you with professional OEM, ODM services

Cooperative development project

Micro single use & calibration-free pH electrode

UltraeWebsite

If you have never used SPE before, we offer you a free trial. Come and contact us!
